SMART SERIES

HDMI(4K)系列——RZSP-4KCH-VII

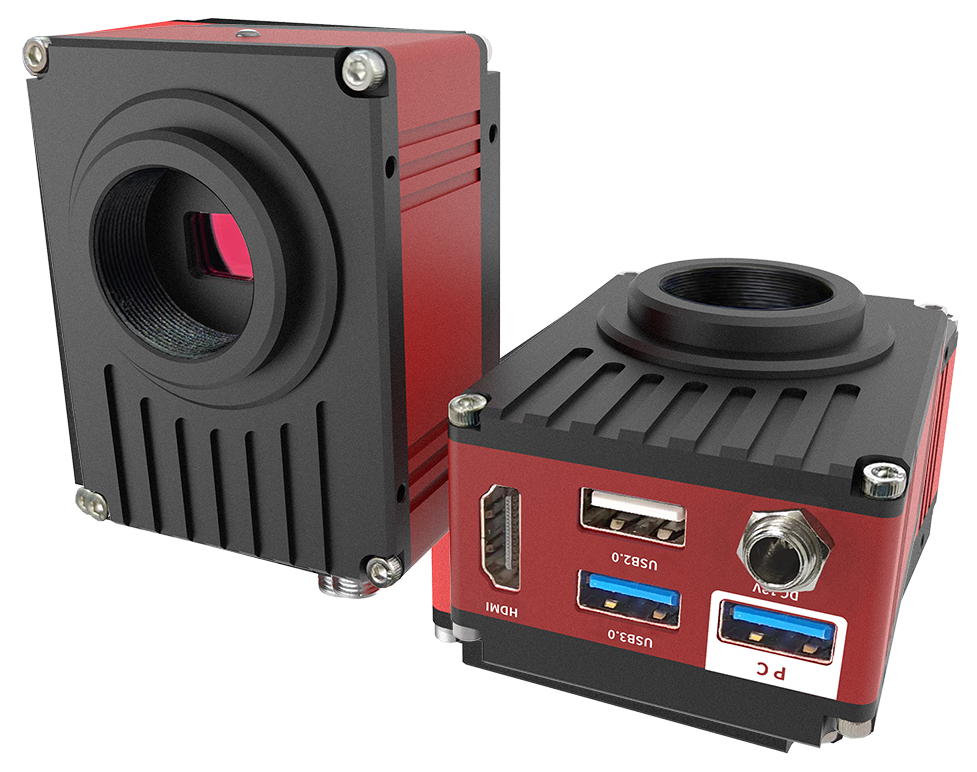

product model RZSP-4KCH-VII
Interface HDMI(4K)
Resolution 3840x2160
Pixel size 2.0um x 2.0um
Target size 1/1.8
Data bits 12bit
Shutter mode RollingRolling Shutter
Output frame rate 60FPS
Output color ColorColor


Camera features:

◆ SONY high-performance photosensitive chip, low noise, high sensitivity, and true color;

◆ High definition photography, video recording and preview playback, image dynamic and static comparison;

◆ Real time image transmission via USB (UVC), extending and porting algorithms to PC hosts;

◆ Custom interface editing and custom template editing functions;

◆ HDMI 2.0 interface adapts to 4K and 2K mode switching;

◆ USB 3.0 high-speed data transfer (supports large capacity portable hard drives);

◆ Support mouse and keyboard operations;

◆ The camera is equipped with a smart image measurement system and real-time magnification feedback;
