SMART SERIES

HDMI(4K)系列——RZSP-4KCH-VI-II

product model RZSP-4KCH-VI-II
Interface HDMI(4K)
Resolution 3840x2160
Pixel size 2.0μm x 2.0μm
Target size 1/1.8
Data bits 12bit
Shutter mode RollingRolling Shutter
Output frame rate 60FPS
Output color ColorColor


Camera features:

◆SONY high-performance photosensitive chip, low noise, high sensitivity, and true color;

◆HD photography, video recording and preview playback, image dynamic and static comparison;

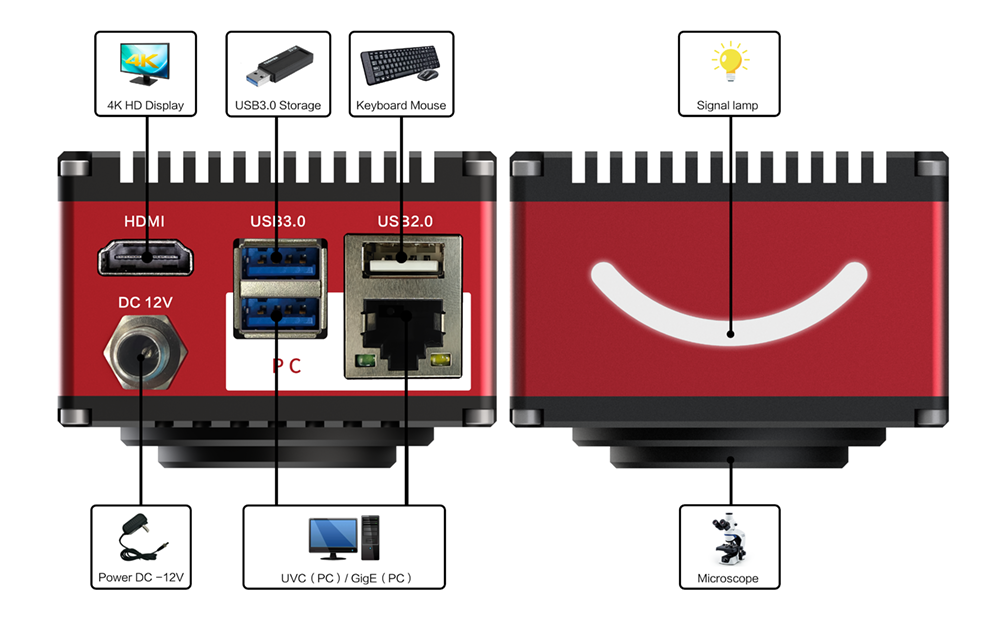

Real time image transmission via Ethernet port and USB (UVC), extending and porting algorithms to PC hosts;

◆Custom interface editing and custom template editing functions;

◆HDMI 2.0 interface adapts to 4K and 2K mode switching;

◆USB 3.0, high-speed data transfer (supports large capacity portable hard drives);

◆Supports mouse and keyboard operations (wireless);

◆The camera is equipped with a smart image measurement system and real-time magnification feedback;

◆Support frame selection measurement method, faster and more accurate measurement;
